EH-G Illuminated Pushbutton Switch
Product Configurator
Part No.：
Select Specification
Illumination Type
Button color / Terminal layout ( for reference )
Lighting ON
Lighting OFF
Terminal layout (BOTTOM VIEW)
This configurator supported only for common part number.
FEATURE
- Depth behind panel
*Standard Button: Only 22.5mm
*Flat Button: Only 25.3mm
- Button Size: 17mm square type, 20.2mm round type
- LED Full-Face, Dual-Color, Illumination available

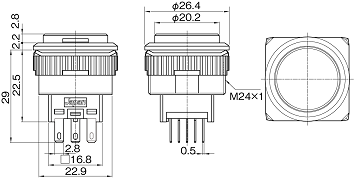

DIMENSIONS
| 17 mm Square |  |
| 17 mm Square Flat |  |
| 20.2 mm Round |  |
| 20.2 mm Round Flat |  |
