■Standard applecable wire
UL1007、UL1430 AWG＃22、20（0.3～0.5sq）
Outside diameter of the outer insulation : Φ1.4～2.0
■Specifications
Characteristic
Specification
Conditions
Insertion-extraction durability
Contact resistance 50mΩ max.
20 times
Vibration
Contact resistance 50mΩ max.
No electrical discontinuity of 0.1ms max.
Frequency 10-55Hz, Amplitude modulation 1.5mm, Cycle 3-5 min, XYZ axis direction, each 2 hours
Shock
Sine harf wave 50G,
Pulse duration 11ms, XYZ6 axis direction, each 3 times
Contact Resistance
Less than 50mΩ(Initial) at DC6V 1A
Insulation Resistance
More than 100mΩ at 500V DC
Dielectric strength
1000V AC RMS between NC and NO terminal
2000V AC RMS between terminals and ground 50/60Hz for 60sec. at normal ambient temperature and humidity
Insulation resistance
More than 100MΩ at 500V DC
Retension force
30N(AWG22) 40N(AWG20) (Vertical direvtion) between Terminal crimping holder and Terminal cover unit
Fitting strength
25N (Vertical direction) between Terminal cover unit and XH series Housing
Applicable wire
UL1007、UL1430 AWG＃22、20（0.3～0.5sq）
Outside diameter of the outer insulation : Φ1.4～2.0
Ambient Temperature
－15～＋50℃
Ambient Humidity
80％RH(max.)
Electrical Rating
AC250V 3A、DC30V 1A(Resistive)
■Ordering Code
※In case of XH contact is SPDT and illumination type is Full-Face.

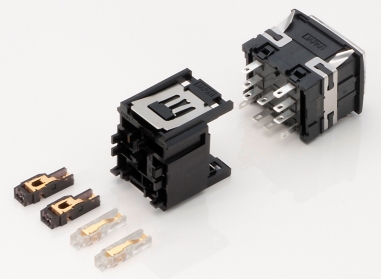

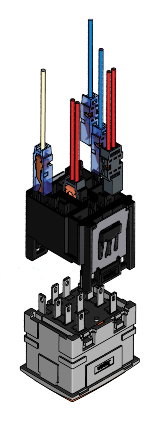

XH-4636-1 = 1 set of contains the following.
Terminal cover unit 1 pcs

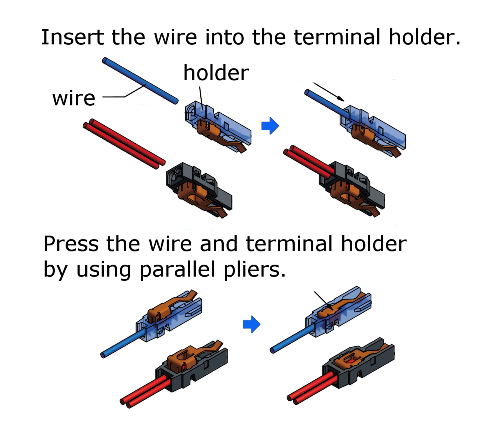

Terminal crimping holder(Single) 3 pcs
Terminal crimping holder(Double) 2 pcs

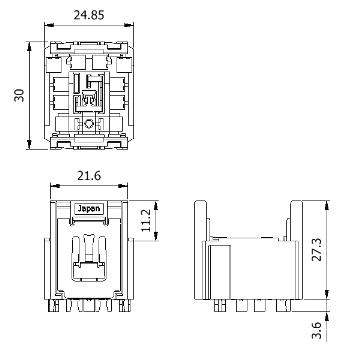

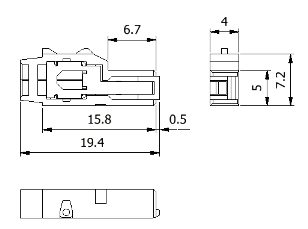

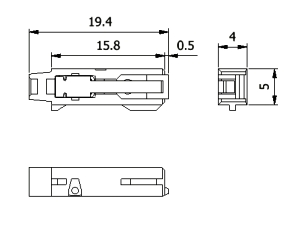

Sell separately for large amount, maintenance. XH-4633 = 1 pack of 10 pcs PA-4634 = 1 pack of 50 pcs PA-4635 = 1 pack of 50 pcs
