PH Pushbutton Switch
Product Configurator
Part No.：
Select Specification
Mounting・Button type
Image for reference
Button Color
This configurator supported only for common part number.
FEATURE
- Small type Pushbutton switch with nut fixing and snap-in type
- Button Size: 12mm square type, 12X17.2mm rectangular type,10mm round type.

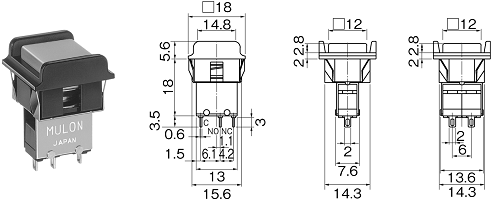

DIMENSIONS
| 12 mm Square Nut Fixing Rear Mount |
 |
| 12×17.2 mm Rectangle Nut Fixing Rear Mount |
 |
| 10 mm Round Nut Fixing Rear Mount |
 |
| 10 mm Round Dress Guard Nut Fixing Front Mount |
 |
| 12 mm Square S-mounter Snap-in Front Mount |
 |
| 12 mm Square V-mounter Snap-in Front Mount |
 |
| 12 mm Square R-mounter Snap-in Front Mount |
 |
